Introduction
Step 3 – Draw a Route/Area

Routes

Route Analysis calculates statistics for a defined route between an origin and a destination, optionally via way points.

Click “Add new route” to start drawing or “Add from template” if you previously save one:

· The maximum route length is 200 kilometers;

· The maximum number of routes is 20;

Follow these steps to add a route:

1. Provide a name.

2. Select the start and the end points. Be informed, it is also possible to select the points on the map.

3. Select the probe source.

  • Passenger: GPS location data from non-professional regular drivers.
  • Fleet: GPS location data from professional fleet, including trucks of different sizes and weights, urban delivery vehicles and leasing passenger cars. No vehicle type distinction is made within the “Fleet” data category.

4. Select the map version.

  • For the period prior to February 2019 select the map version 2016.12. (eg. December 2018 - 2016.12).
  • For the date range starting from Feb 2019 you must use 2018.12 map.
  • However, if your date range is within the last 2 years (which is a moving time window) you can use any of the map versions. Traffic Stats recommends the map version that fits best your selected date range.

5. Click “Save”.

6. In case you have provided the required routes click “Next” to move to Summary.

Area - Full

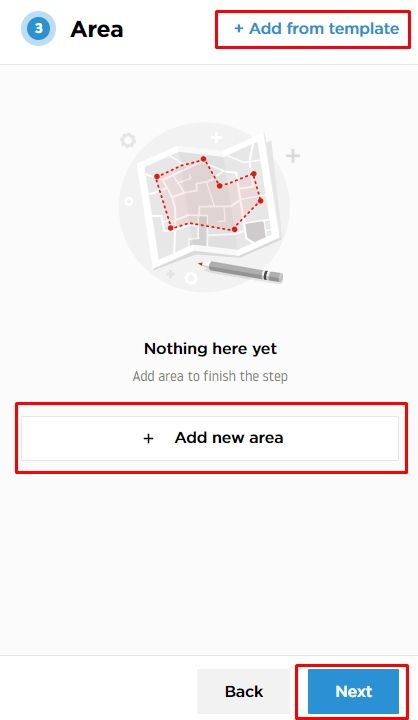

Click “Add new area” to start drawing or “Add from template” if you previously save one:

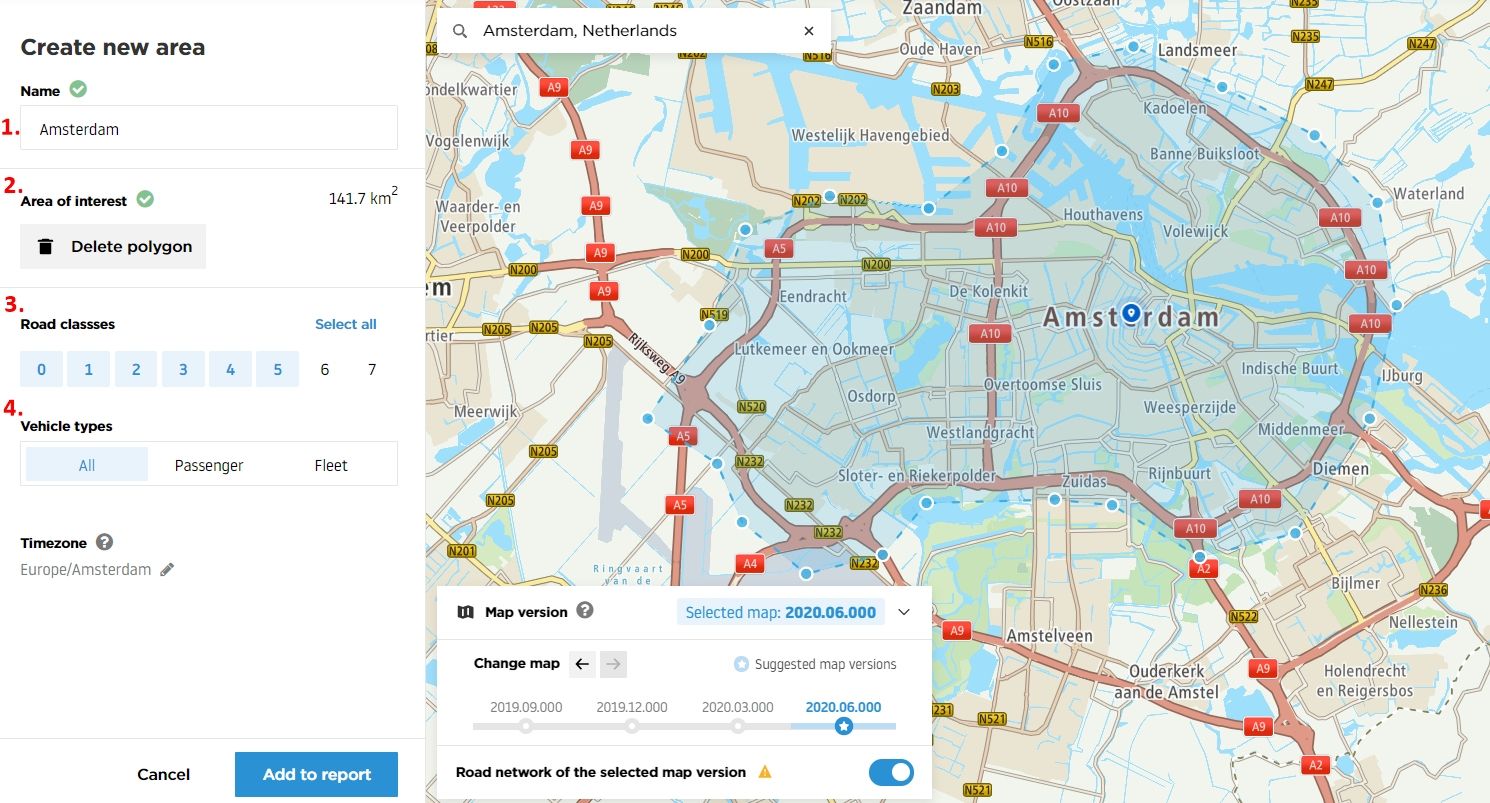

Follow these steps to add an area:

1. Provide a name.

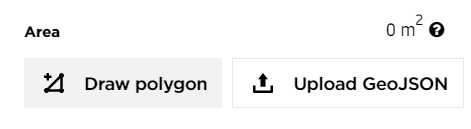

2. Click “Draw polygon” and define an area by placing dots on the map and right-clicking to complete the polygon, or upload a GeoJson file. The maximum area size is 20 000 km2.

3. Define what FRC’s (Functional Road Classes) to include in the query.  FRC is a hierarchical designation of the entire road network, ranging from Highways (FRC 0) to local city roads (FRC 7). Please see the table below with the explanation of each FRC:

4. Select the vehicle type.

  • Passenger: GPS location data from non-professional regular drivers.
  • Fleet: GPS location data from professional fleet, including trucks of different sizes and weights, urban delivery vehicles and leasing passenger cars. No vehicle type distinction is made within the “Fleet” data category.

5. Select the map version.

  • For the period prior to February 2019 select the map version 2016.12. (eg. December 2018 - 2016.12).
  • For the date range starting from Feb 2019 you must use 2018.12 map.
  • However, if your date range is within the last 2 years (which is a moving time window) you can use any of the map versions. Traffic Stats recommends the map version that fits best your selected date range.

6. Click “Add to report”.

Area - Traffic Density

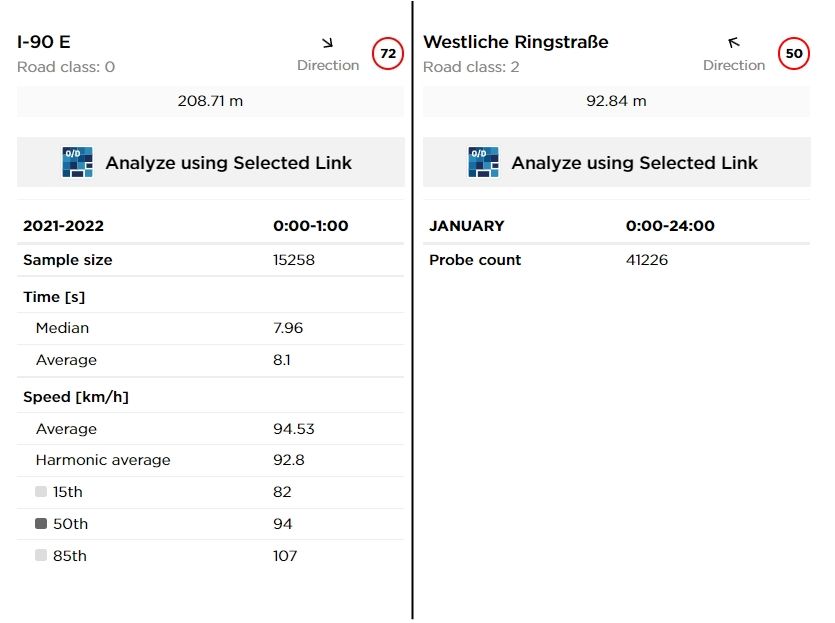

Selecting this kind of report will influence the report results, as instead of the full report you will receive the probe number for every segment only.
