Route Analysis Results

Route Analysis

Example of route results visualization:

A view of the parameters set for the report
A map view of segment details
A graph view of segment details

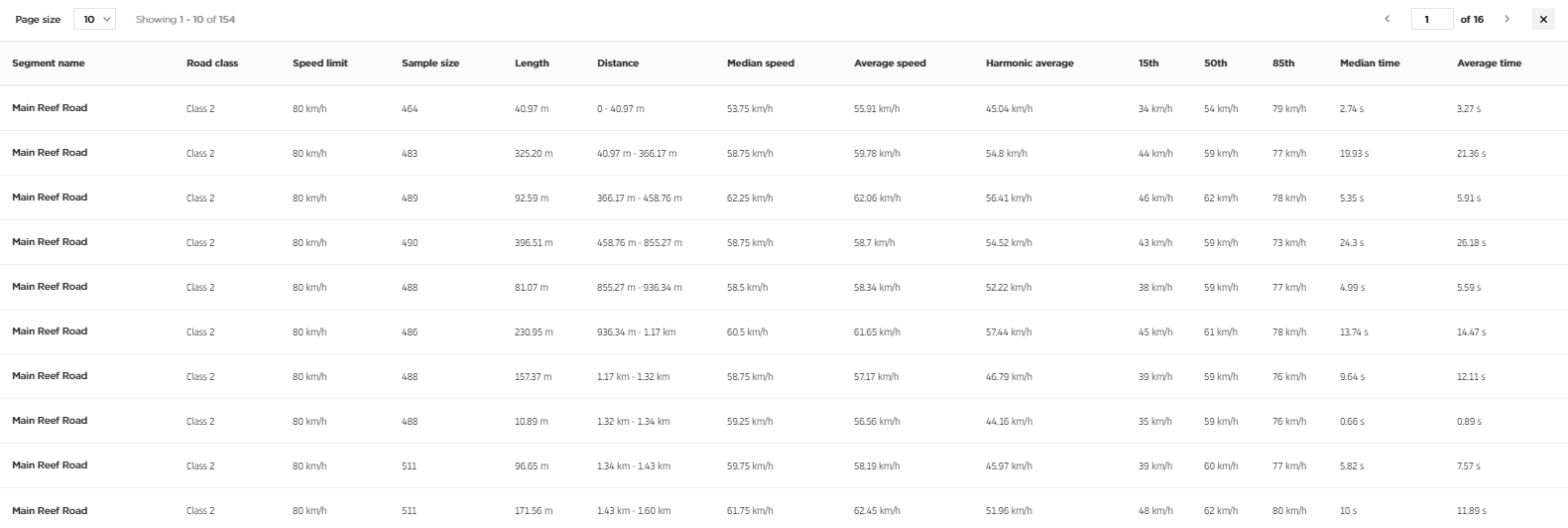

Segment list of the route analysis:

A list of each segment and its corresponding values

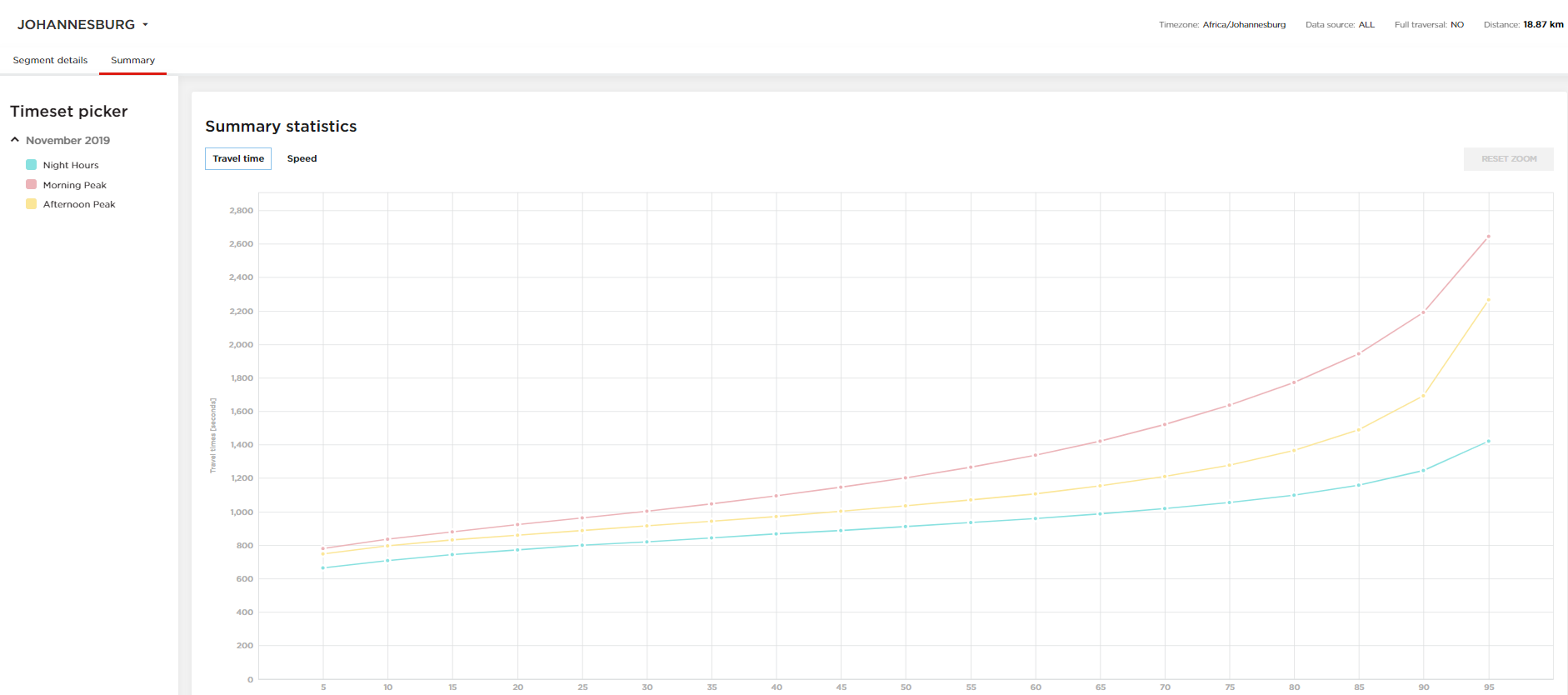

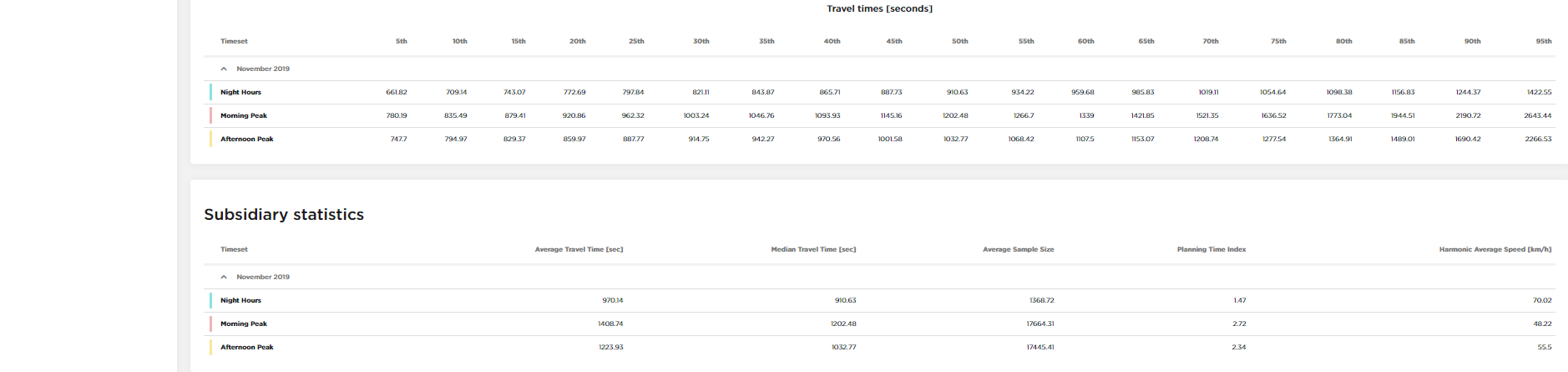

Example of route results visualization – summary:

For every Route Analysis, the results and route definition can be downloaded. The downloadable files include:

· Zip (GeoJson)

· Json


· ZIP file



GeoJSON is a format for encoding a variety of geographic data structures.


The JSON file contains all information presented in the XLSX file but presented in the respective format. Please refer to the XLSX section below for the related description.


A Google format file with route geometry, average speeds, and travel time ratios to be displayed on Google Earth.


The spreadsheet (Excel format) file gives basic information about the analysis such as the name of the job, creation date, date ranges, and time sets, presented within the first tab of the Excel file. Also on the first tab, the output file includes information on a route level:

· Route ID

· Route – route name

· Date Range

· Time Set

· Full Traversal

· Probe Source

· Covered Route Length [meters]

· Sample size [average per segment]

· Average Travel Time [hh:mm:ss]

· Median travel time [hh:mm:ss]

· Harmonic Average Speed [kph]

· 15th percentile Speed [kph]

· 85th percentile Speed [kph]

· Average Travel Time ratios

· Planning Time Index

· From 5th to 95thpercentile of Travel Time

· Total route length [meters]

· Map Versions

· Standard Deviation of travel time (available only for Full Traversals)

The following tabs in the excel file provide the following definitions:

· Speeds (harmonic average) – on segment level

· Speeds (median) – on segment level

· Percentile Speeds – on route level

· Percentile Travel Times – on route level

· Cumulative Travel Times – on segment level

· Relative Standard Deviation – on segment level

· Travel Time Ratio – on segment level

· Percentiles Each Segment – on segment level

ZIP file

The compressed file delivers the Shapefile (Esri format) with route geometry and DBF tables corresponding to the analysis pre-defined Time Sets.
